地面安装的光伏支架系统

Ground Mounted Solar Pv Mounting Systems .

GROUND SOLAR BRACKET SPECIFICATIONS

▶ Installation site                               Flat roof.

▶ Installation angle                           5°,10°

▶Wind speed                                        <45m/s.

▶Snow load                                           <1.2KN/m².

▶Build height                                       <20m.

▶Material                                                 AI 6063-T5 & SUS304.

▶Surface treatment                         HDG.

▶Refer to standard                          GB50009,UL2703,DIN1055.

▶Warranty                                             15-year warranty , 25-year service life.

GROUND SOLAR RACKING SYSTEM HARDWARE

▶  Bluesun Ballasted Solar PV Mounting Structures highly engineered solution which can effectively reduce the influence of wind on the photovoltaic system, with Q235B steel bracket as main body material,HDG surface treatment, service life is more than 25 years.

▶  Cement based implanted in the ground makes the connection is firm,embedded bolt will be set into cement based to convenient installation between Mounting Rack Foot and cement based.

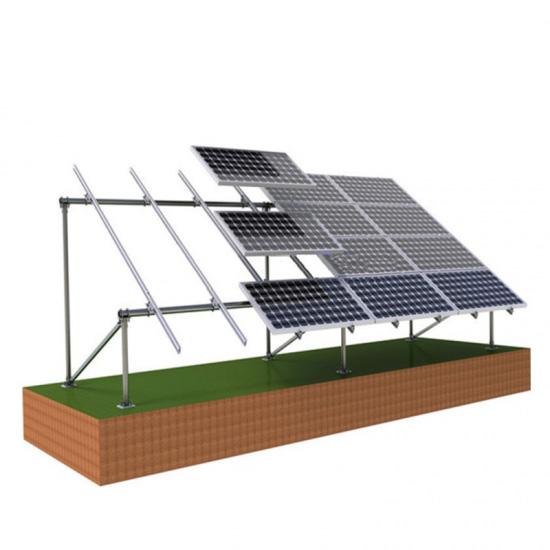

▶  Ground Solar Panel Pole Systems with features :convenient installation, low cost ,suitable for large-scale Photovoltaic Power Station Constructure.

▶  Concrete foundation Pole Mounts for Solar Panels Bracket suits for all kinds of soil. We optimized the wind and snow load resistance performance, and can bear larger span and larger pressure, realize the optimal design proposal.

PACKING

TO HELP YOU GET THE RIGHT SYSTEM,PLEASE KINDLY OFFER THE FOLLOWING NECESSARY INFO:

1. Dimension of solar panels(length*width*thickness)?

2. Quantity of solar panels?

3. Where to install : rooftop (flat roof or pitched roof ) or ground ?

4. Tilt angle?

5. Any requirements about wind load and snow load?

6. Any minimum height requirement(distance from ground to panel)?
