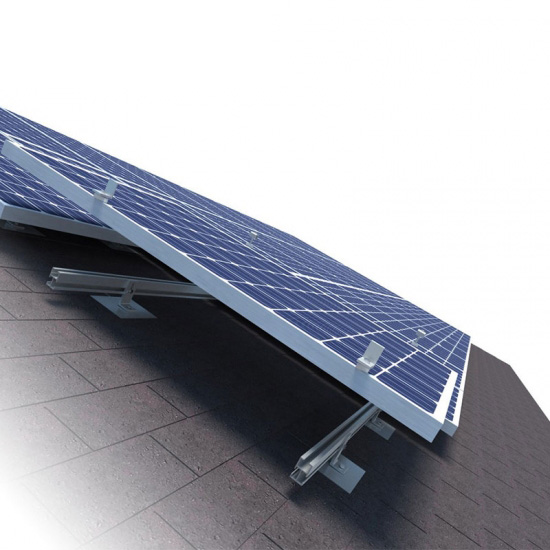

斜面屋顶太阳能电池板支架

Pitched Roof Solar Panel Mounting Structure System.

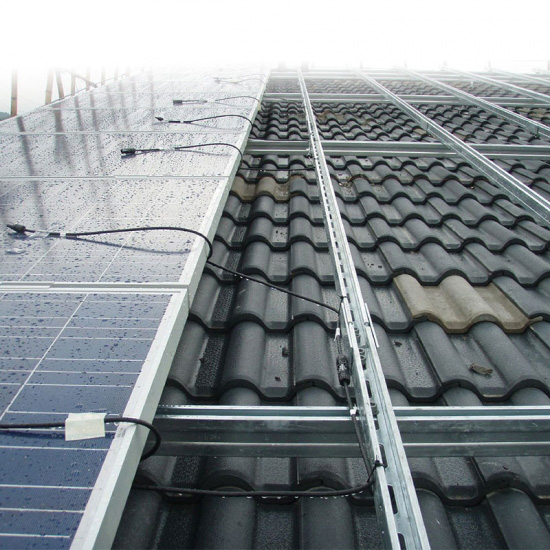

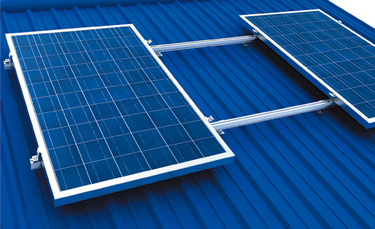

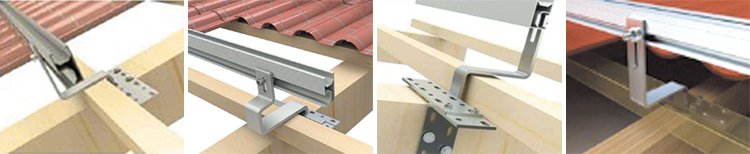

TILE ROOF                                                                      TIN ROOF

SPECIFICATIONS

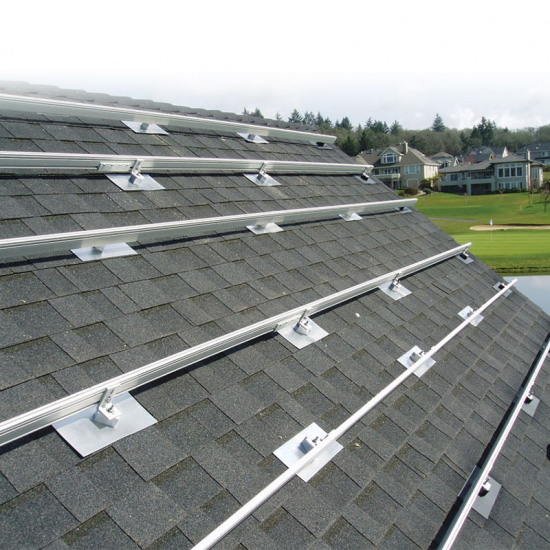

▶ Installation site                               Pitched roof.

▶ Installation angle                           parallel to the roof.

▶Wind speed                                        <60m/s.

▶Snow load                                            <1.2KN/m².

▶Build height                                        <20m.

▶Material                                                 AI 6063-T5 & SUS304.

▶Surface treatment                         Anodizing.

▶Refer to standard                          GB50009,UL2703,JISC8955, DIN1055.

▶Warranty                                             10-year warranty , 20-year service life.

▶  Pitched roof mounting structure system designs with great flexibility both for commercial and residential roof solar system.

▶  Solar roofing system is suitable for installing framed and frameless modules flushed to the roof .

▶  Solar roof mount with easy to install , high preassembly parts features will save your installation time and money.

▶  Bluesun Solar has developed several special Solar Roof Rack Systems , by them, Solar Panel Pole Mounting Systems will plying-up roofing and prevent roof leaking.

▶  Solar PV Mounting Structure Kit with aluminium alloy and stainless steel material will make all mounting system stable and anti-corrosion.

TO HELP YOU GET THE RIGHT SYSTEM,PLEASE KINDLY OFFER THE FOLLOWING NECESSARY INFO:

1. Dimension of solar panels(length*width*thickness)?

2. Quantity of solar panels?

3. Where to install : rooftop (flat roof or pitched roof ) or ground ?

4. Tilt angle?

5. Any requirements about wind load and snow load?

6. Any minimum height requirement(distance from ground to panel)?
